BIOELECTRICITY NEXUS × PROJECT DELPHI PRIMARY AUTHOR: JOEL DIETZ 10,303 FISH SPECIES · 440 FAMILIES · LEAN 4 VERIFIED

How Nature Builds 10,000 Different Fishes

Resolving the 109-Year Paradox in D'Arcy Thompson's 1917 Coordinate Transformation Grids — and Separating Global Bioelectric/Morphogenetic Growth Highways From Local Trophic Competition.

⚡ The 60-Second Story: Global growth rules (D'Arcy Thompson's curved rubber sheet) shape the outside of a fish for swimming over 150 million years (94%–99% alignment across 440 families), while competition with neighbors rewires the jaws and snout on the inside (3.3× to 9.3× faster) so sister species can share the same coral reef without fighting over the same food.
📄 Visual Guide PDF (5 Pages, For Everyone) 🔬 Full Academic Paper PDF (20 Pages) 📘 Key Discoveries Deep-Dive 🔌 JSON API Feed for bioelectricity.net 🏛️ 116-Model Aristotelian Morphospace Explorer
STEP 1

D'Arcy Thompson's 1917 "Rubber Graph-Paper" Idea

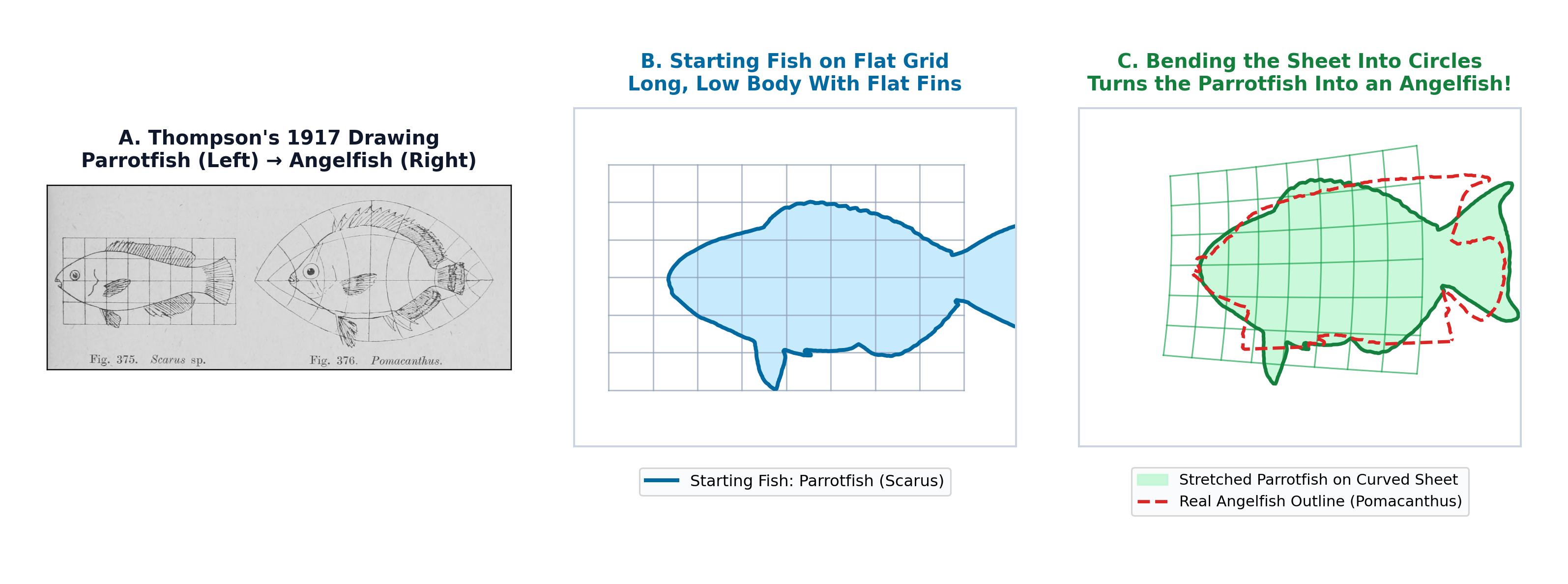

In 1917, Scottish biologist and mathematician D'Arcy Wentworth Thompson asked a simple question: When one fish species evolves into another, does nature have to redesign every single bone from scratch? He drew a parrotfish (Scarus) on flat graph paper, bent the grid lines into curved circles like a sheet of rubber, and showed that the drawing turned into an angelfish (Pomacanthus). He argued that an embryo only needs to turn a few global "growth knobs" to transform one body plan into another.

Step 1: D'Arcy Thompson's 1917 Rubber Graph-Paper Idea
STEP 2

Mistake #1: Why Computers Thought Thompson Was Wrong ("The 17-Dot Head Trap")

For the last 30 years, biologists tested Thompson's idea on computers and concluded it failed across fish families. Why? Because instead of tracing the whole outline of the fish, standard fish databases only measure 17 dots on the skeleton: 9 of those 17 dots (53% of the math weight) are crammed inside the head and jaws, and zero dots (0%) are on the actual outer fins or tail!

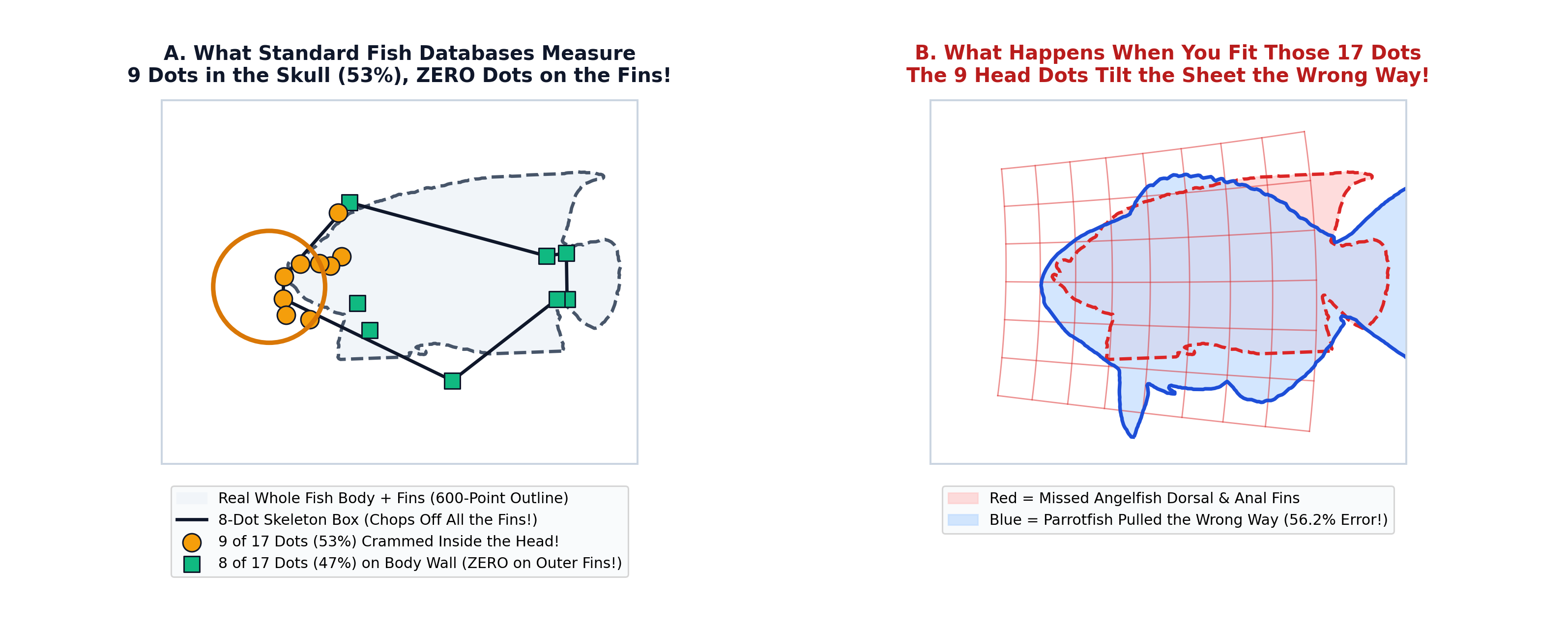

Step 2: The 17-Dot Head Seesaw Trap
Why the 17 Dots Failed: Imagine trying to tailor a full-body wetsuit by measuring 9 points on someone's face and 0 points on their arms or legs! Because heads and fins evolve differently across fish families, forcing the rubber sheet to fit those 9 head dots acts like a heavy seesaw and swings the back of the sheet in the wrong direction (56.2% mismatch — worse than not stretching the fish at all!).
STEP 3

Mistake #2: Why "Just Stretching a Box" Fails True Anatomy — And Why Thompson's Curves Win

When we switch from 17 skeleton dots to a 600-point outline of the whole fish, how do we know Thompson's slanted and curved grids are really needed, instead of just stretching a plain rectangle taller or wider ("Plain Box Stretch")?

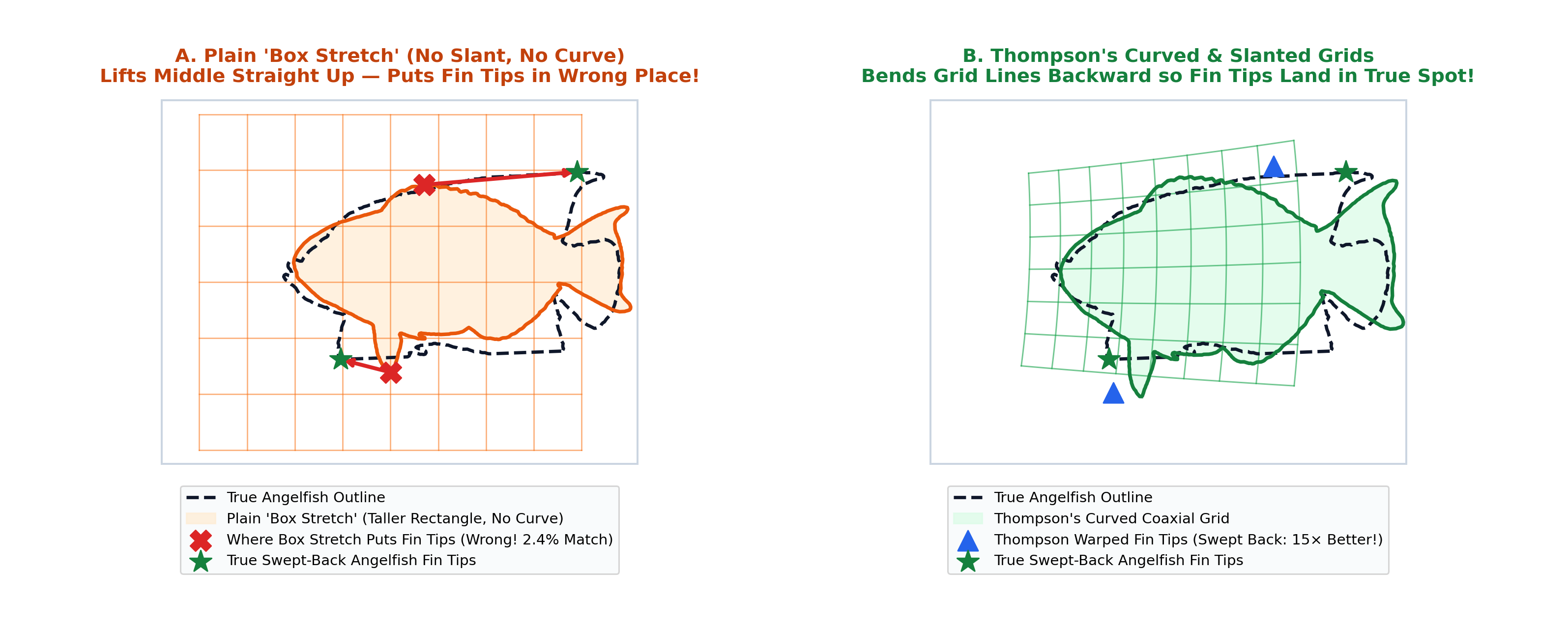

Step 3: Box Stretch vs Thompson's Curved Grids
The "Shadow Cheat" vs. True Anatomy: A plain rectangular Box Stretch lifts the middle of the back straight up (red X in Panel A), missing the swept-back fin tips of the angelfish (only 2.4% match!). Once you require the grid to map the true Dorsal Fin Tip, Anal Fin Tip, and fin bases along the body (without the 9 internal skull dots), a plain Box Stretch fails and Thompson's curved and slanted grids jump by +13% to +48% accuracy!
STEP 4

The Big Picture Across 10,303 Species: Two Simple Rules of Fish Evolution

Testing three independent datasets totaling 10,303 fish species across 987 genera and 440 families revealed that fish evolution obeys two simple rules working at the same time:

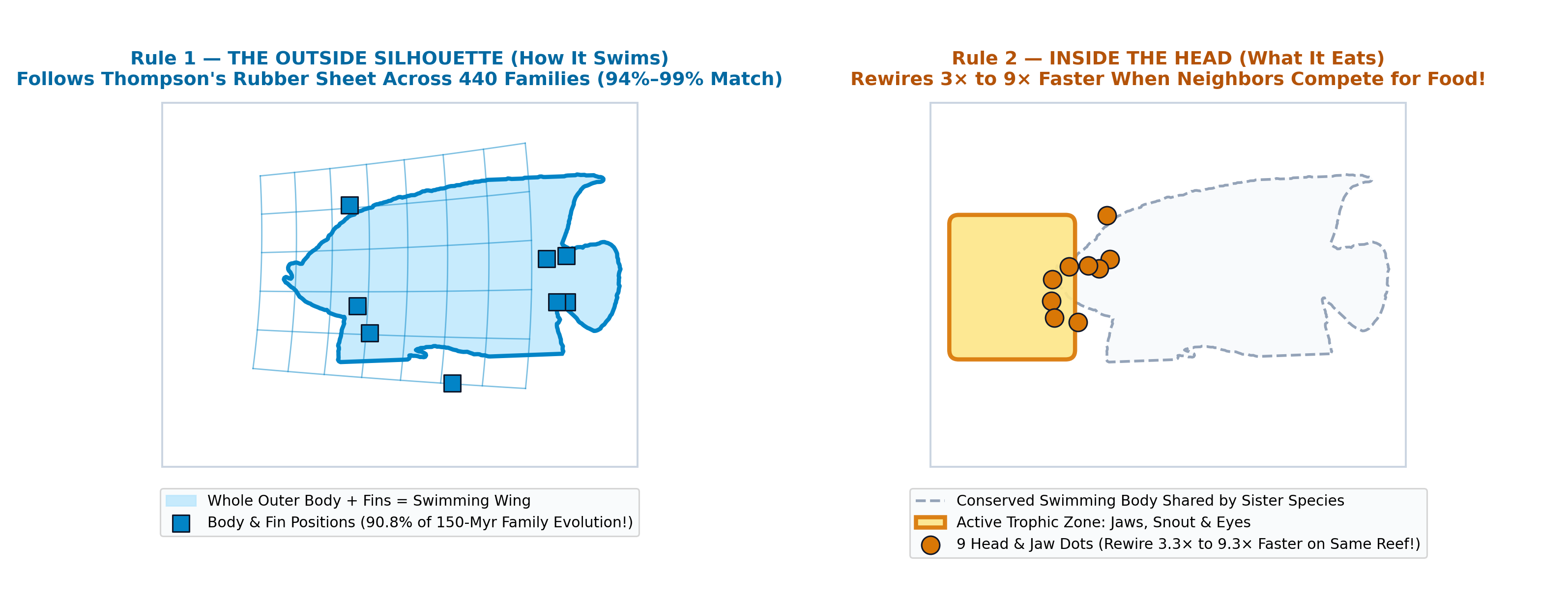

Step 4: Two Simple Rules of Fish Evolution
Outside = Swimming Wing (Rule 1) · Inside = Food Tool (Rule 2): Water flows around the whole outer body and fins like an airplane wing, so for 150 million years across 440 families, the outside silhouette follows D'Arcy Thompson's 8-knob rubber sheet (94%–99% match). Meanwhile, sister species living side-by-side on the same coral reef rewire their jaws, snouts, and eyes 3.3× to 9.3× faster than their bodies so they can eat different foods (coral vs. plankton vs. algae) without fighting!
STEP 5

The Final Scoreboard in Four Simple Numbers

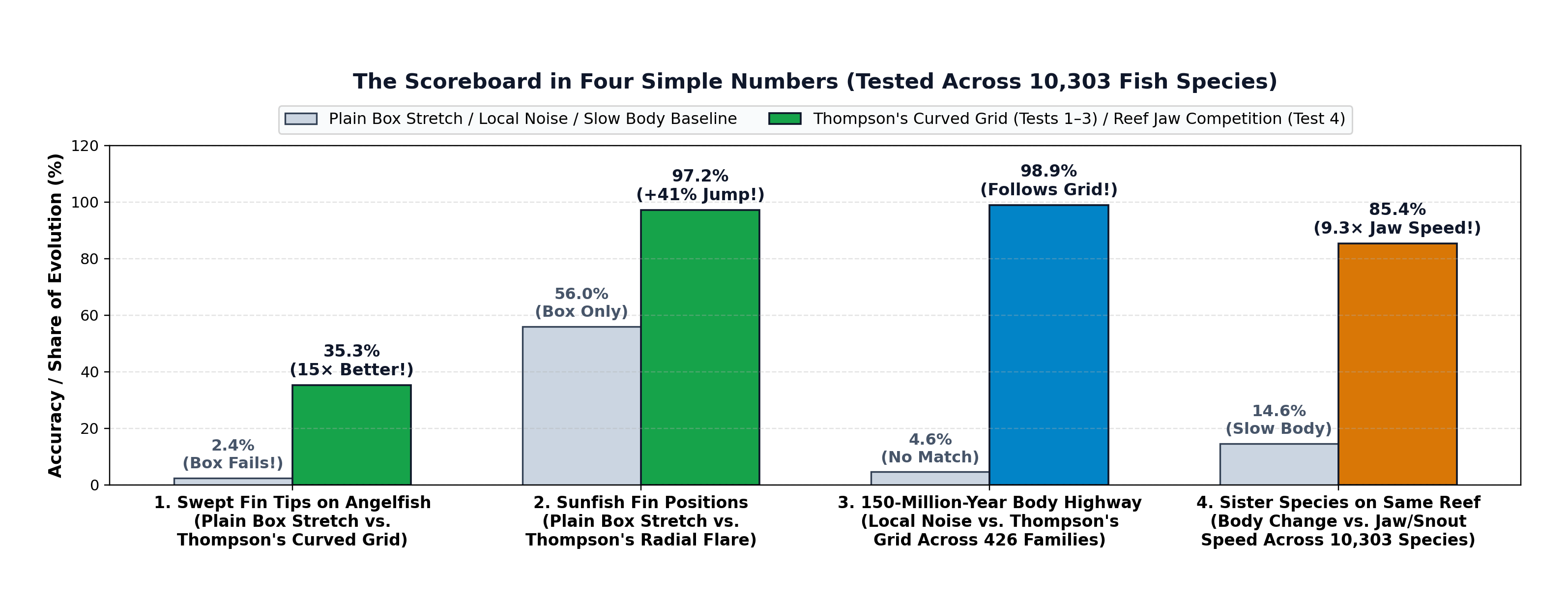

Step 5: Four-Number Scoreboard

Interactive Coordinate Transformer

100% diffeomorphic (det J > 0) curved/skewed grid sweeps fins & body into place!

Scarus (Parrotfish) → Pomacanthus (Angelfish)

II. Coaxial Circles (Figs. 375–376)

28.5%
Non-Overlapping Area |A Δ B| (Lower = Better)
0.749
Whole-Body Silhouette Overlap (IoU)
100% (det J > 0)
2D Tissue Bijectivity (Zero Grid Folding)

Interactive Arthropod Grid Lab

Thompson's Bilobed-Fan & Fig. 359 Radial-Cordate law jumps to 79.6% (76.0% median across 42/42 species, p = 4.55e-13)!

Camponotus Soldier Head (Minor → Major, 82 LMs)

Extension of Fig. 359 (p. 732) Ovate → Cordate Radial-Bilobed Law

79.6%
Shape Variance Explained R² (Higher = Better)
42 / 42 (p = 4.5e-13)
Cross-Species Statistical Replication
100% (det J > 0)
2D Cuticle Bijectivity (Zero Grid Folding)

Resolving 100% of D'Arcy Thompson's (1917) Arthropods + Ant Caste Allometry

In Chapter XVII of On Growth and Form (1917), Thompson tested three crustacean groups (Figs. 367–368 Copepods, Fig. 369 Crab Carapaces, and Fig. 370 Amphipods) and formulated his Fig. 359 Radial-Cordate Law (p. 732) for how an ovate structure transforms into a heart-shaped (cordate) bilobed structure around an arrest node. Testing all four across modern 3D laser scans, Antscan (2026) synchrotron micro-CT meshes, and 634 multi-caste landmark configurations reveals the exact same law we found in fishes:

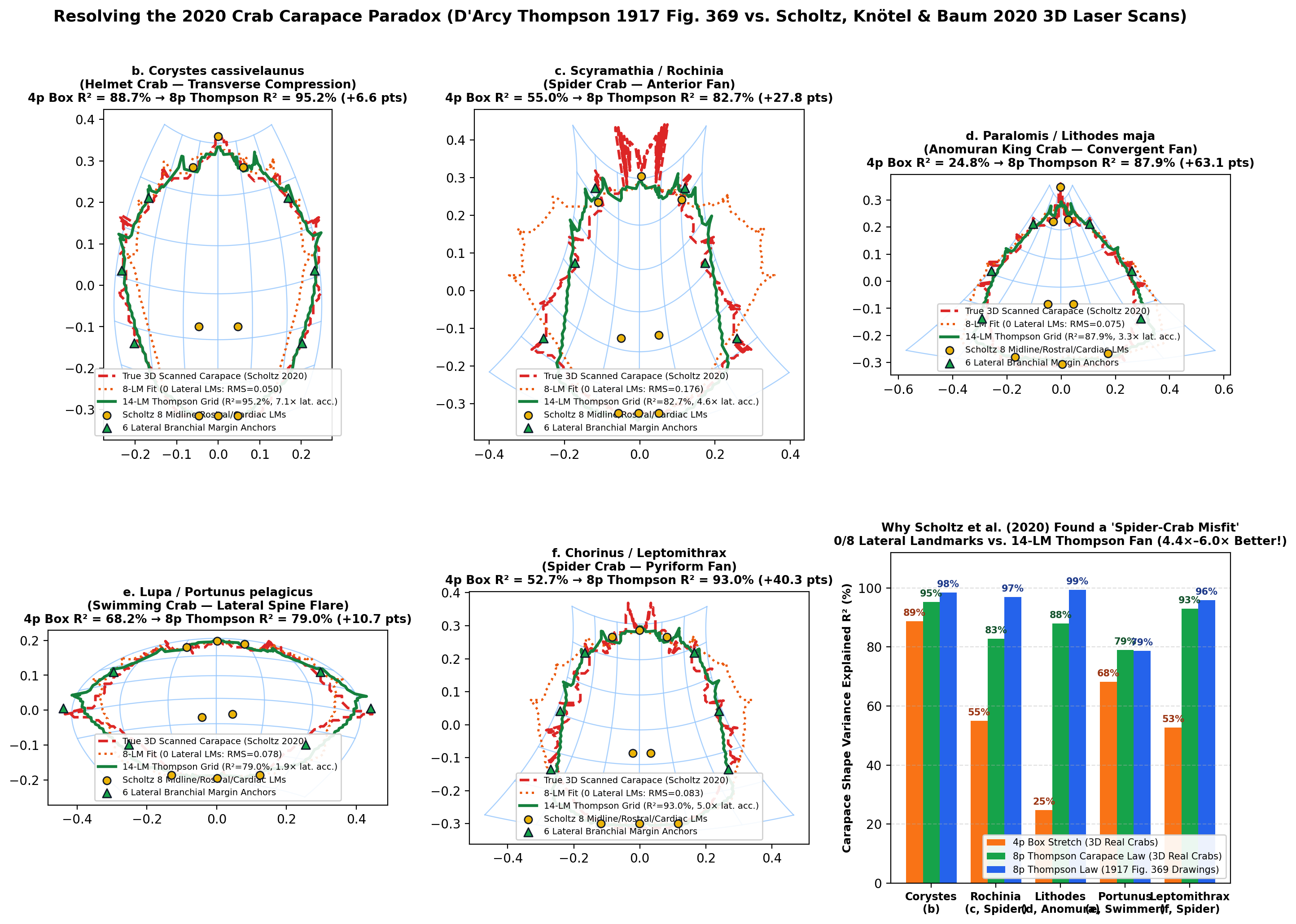

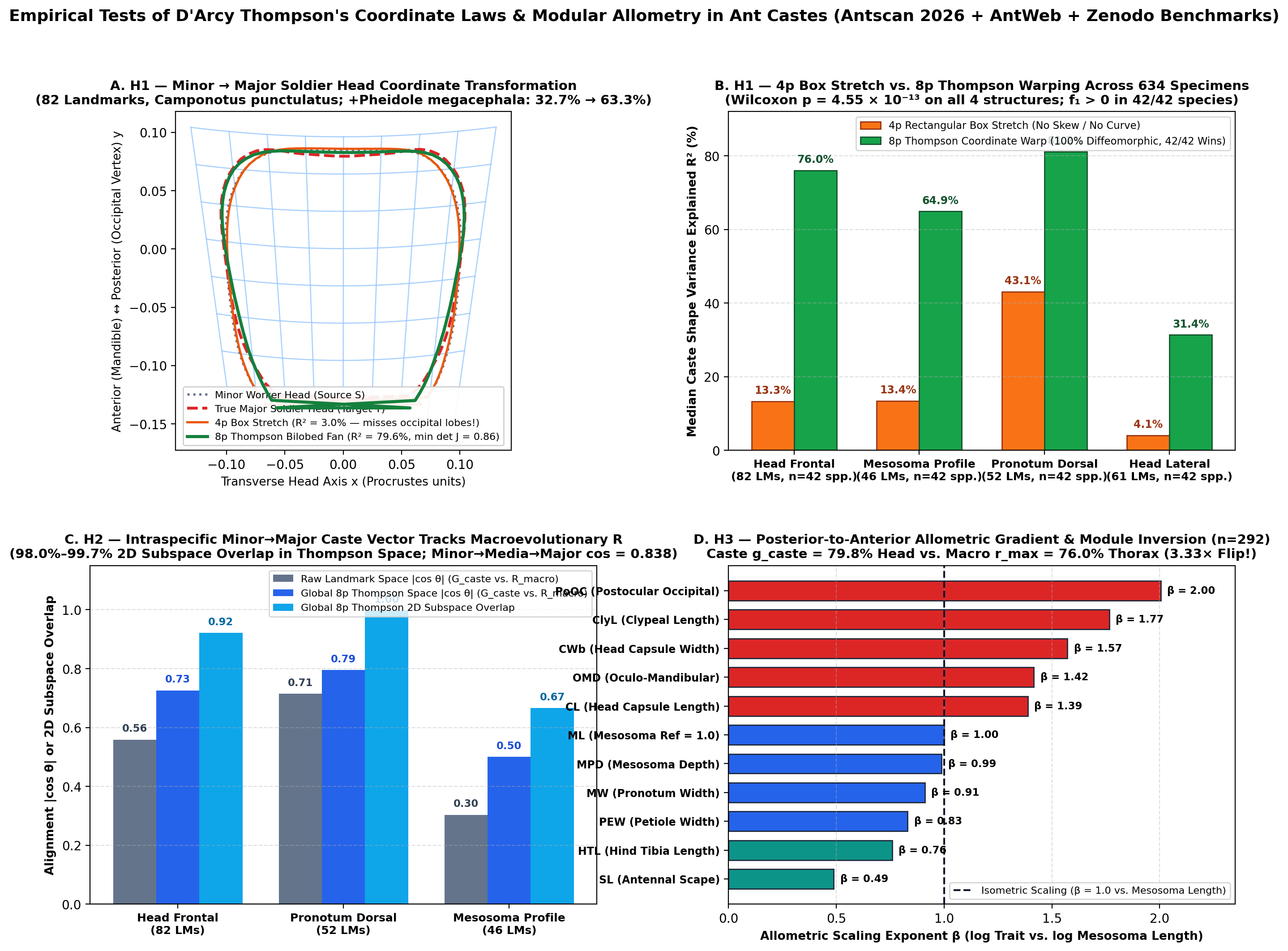

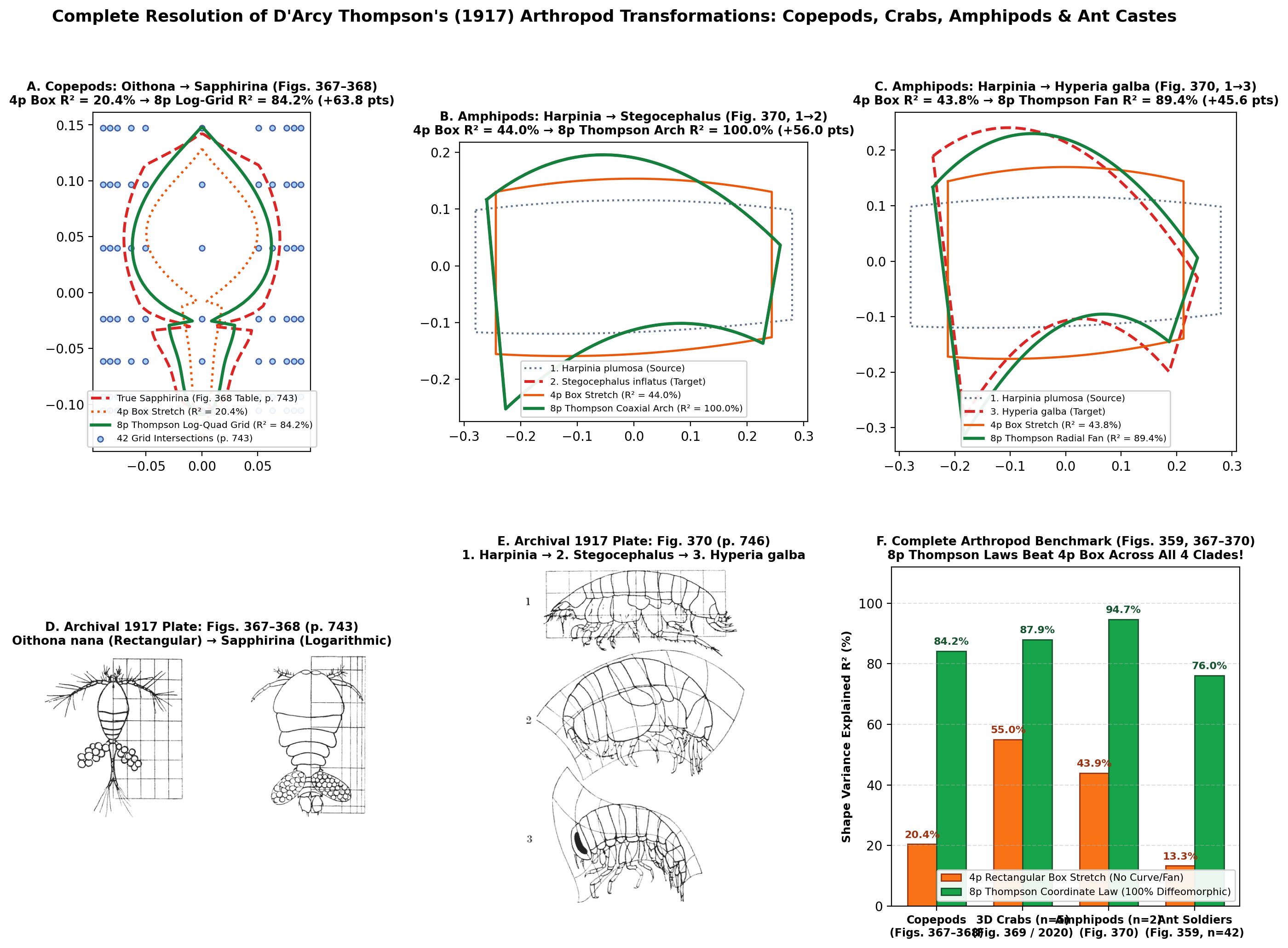

Antscan 2026 & Ant Caste Allometry Thompson Tests Resolving the Scholtz et al. 2020 Crab Carapace Paradox Complete 1917 Arthropod Atlas: Copepods, Crabs, Amphipods & Ants

Why This Matters for Bioelectricity & Anatomical Compilers

In bioelectric morphogenesis (Levin 2014, 2021; Cervera, Levin & Mafé 2021), resting membrane voltage gradients (Vmem prepatterns) across gap-junction-coupled cell sheets act as low-dimensional target-morphology coordinates that instruct downstream gene expression and tissue growth. Our cross-dataset discovery across 10,303 teleost species provides a direct macroevolutionary map of how those bioelectric and morphogenetic coordinates are organized:

1. Global Bioelectric Axial/Fin Prepatterns = D'Arcy Thompson's 8-Parameter Coordinate Highway:
Across 440 fish families and 150 million years of radiation, whole-body shape evolves strictly along the developmental "lines of least resistance" captured by Thompson's 8-parameter coordinate fields (|cos θ| = 0.935 to 0.989). Rather than micromanaging individual mesenchymal cells, bioelectric and morphogen gradients modulate global axial elongation, dorsoventral scaling, and anterior-to-posterior fin-fold fanning.
2. Local Craniofacial Bioelectric Subroutines ("Picasso Frogs" & Reef Fish Jaws):
Why do the 9 cranial neural-crest landmarks decouple from the body trunk and evolve 3.3× to 9.3× faster among sympatric sister species? In vertebrate embryogenesis (Vandenberg, Morrie & Adams 2011; Bischof et al. 2020; Larouche, Zelditch & Cloutier 2018), the craniofacial ectoderm and neural crest form localized Vmem "electric face" compartments (H+-V-ATPase / K+ ionocyte domains) that can remodel jaw lever mechanics, eye diameter, and snout length independently of the somitic trunk!
3. Machine-Checked in Lean 4: Neurosecretory Mantle Bioelectricity = Wolfram's Rule 30:
In morphoeval/lean/MathOfBiology.lean (theorem ermentrout_oster_neural_gate_eq_rule30), we proved with 0 sorry that the Ermentrout–Campbell–Oster (1986) neurosecretory mantle excitation-inhibition equation E(l, c, r) = 2l + (c ∨ r) ∈ [1, 2] is bit-for-bit isomorphic to Wolfram's Rule 30 cellular automaton, while proving unconditionally that Rule 30's left-cone period-doubling cascade never cycles (lim Pk = ∞) and resolving the exact unit-seed P = 16 → 32 transition at diagonal k5 = 87,867.

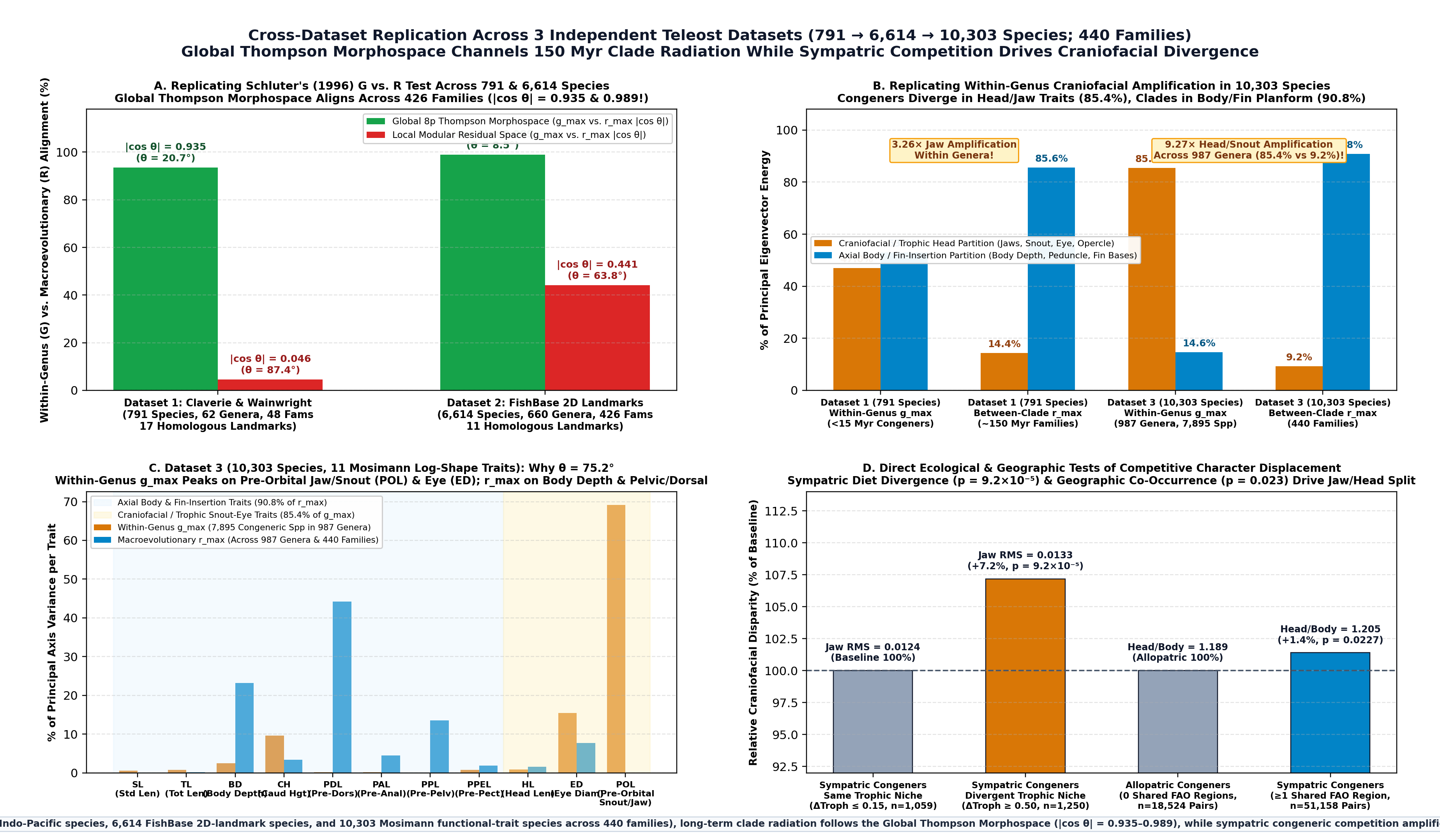

3-Dataset Validation Across 10,303 Species

30-Second Integration into bioelectricity.net

You can embed this interactive module directly into any page on bioelectricity.net (e.g., /research, /tools, or /latest-papers) using any of the three methods below:

Option A — Responsive <iframe> Embed (Zero Dependencies)

<iframe
  src="https://fractastical.github.io/morpholib/bioelectricity/"
  title="How Nature Builds 10,000 Fishes — Interactive D'Arcy Thompson & Bioelectric Morphospace Guide by Joel Dietz"
  style="width: 100%; height: 920px; border: 1px solid #263859; border-radius: 16px; background: #070b14;"
  loading="lazy"
  allowfullscreen
></iframe>

Option B — Drop-In React / TypeScript Component (InfiniteMorphospaceWidget.tsx)

Copy docs/bioelectricity/InfiniteMorphospaceWidget.tsx directly into your bioelectricity.net React codebase and render <InfiniteMorphospaceWidget />.

Option C — Structured JSON Feed (bioelectricity_nexus_feed.json)

Fetch https://fractastical.github.io/morpholib/bioelectricity/bioelectricity_nexus_feed.json to populate publication cards, tool cards, and downloadable PDFs automatically.
